Reach Truck AMR

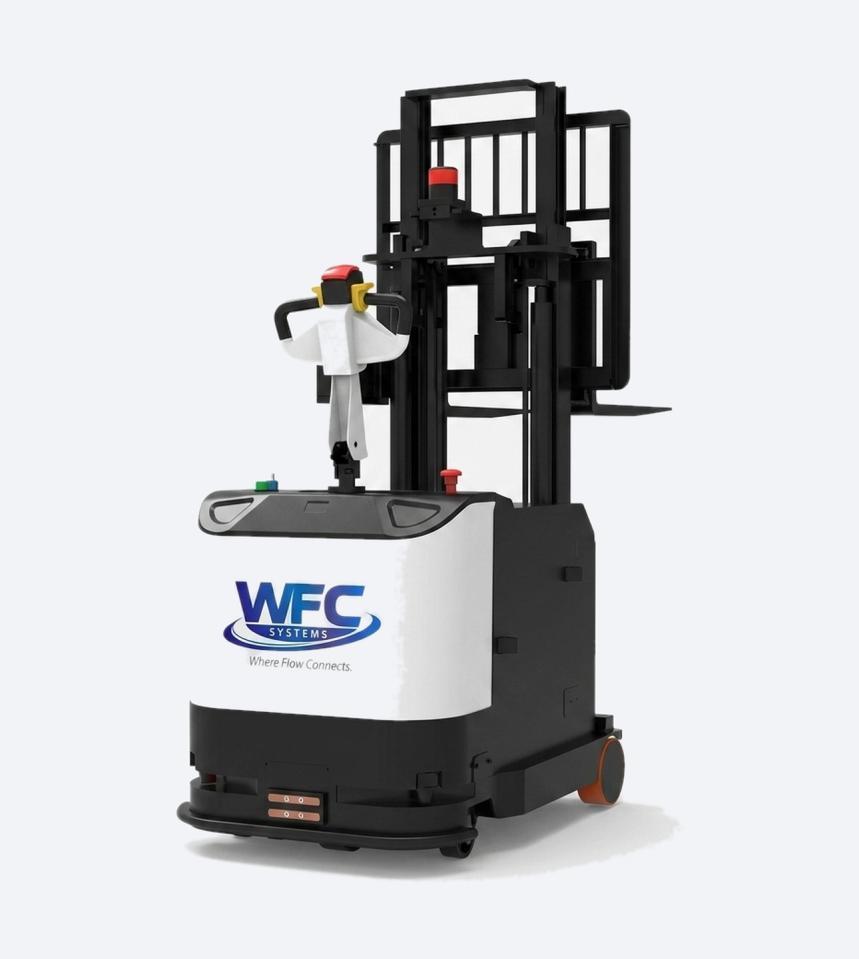

1.2T Reach Truck AMR
Verified specifications for a Laser SLAM reach truck AMR with a 1,200 kg load capacity and 2,500 mm lifting height.
Key specifications
- Load capacity
- 1,200 kg
- Lifting height
- 2,500 mm
- Turning radius
- 1,128 mm
- Battery
- 48V / 100Ah
Full specifications
Technical details.
Values are reproduced from the approved WFC AMR fleet catalogue.
- Class
- Reach Truck AMR
- Travel speed, laden / unladen
- 0.33 / 0.42 m/s
- Navigation method
- Laser SLAM
- Voltage / capacity
- 48V / 100Ah
- Communication / WiFi
- No WiFi required (setup only)
- Runtime
- 6–8H
- Dimensions (L × W × H)
- 2,381 × 910 × 1,899 mm
- Charge time
- ~4H
- Fork size
- 1,070 × 100 × 35 mm
- Obstacle detection
- 5m LiDAR
- Outer width of forks
- 630 mm
- Safety bumper
- Front safety collision edge
- Minimum aisle width
- 1,600 mm*
- Positioning accuracy
- ±100 mm
* Autonomous-navigation minimum aisle width, not a physical stacking-aisle measurement.
