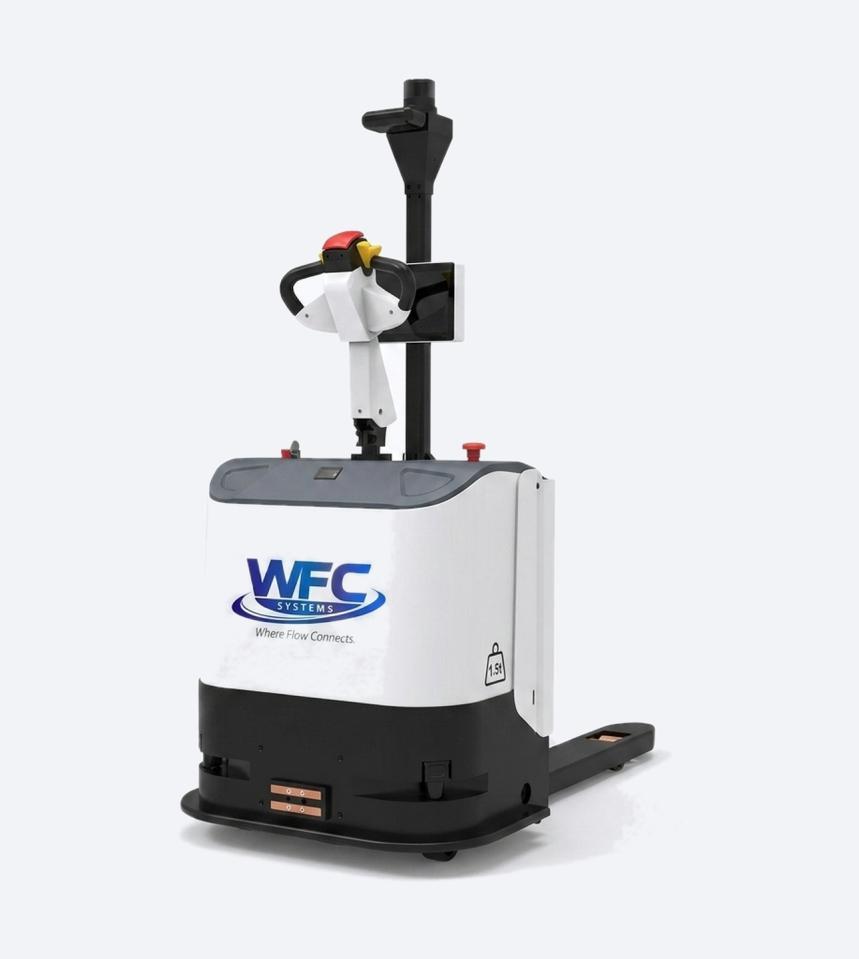

Pallet Jack AMR
2T Pallet Jack AMR
Verified specifications for a Laser SLAM pallet jack AMR with a 2,000 kg load capacity and 210 mm lifting height.
Key specifications
- Load capacity
- 2,000 kg
- Lifting height
- 210 mm
- Turning radius
- 1,573 mm
- Battery
- 25.6V / 60Ah
Full specifications
Technical details.
Values are reproduced from the approved WFC AMR fleet catalogue.
- Class
- Pallet Jack AMR
- Travel speed, laden / unladen
- 0.97 / 1.11 m/s
- Navigation method
- Laser SLAM
- Voltage / capacity
- 25.6V / 60Ah
- Communication / WiFi
- WiFi required (always-on)
- Runtime
- 8H
- Dimensions (L × W × H)
- 1,727.5 × 856 × 1,673 mm
- Charge time
- 2H
- Fork size
- 1,100 × 170 × 55 mm
- Obstacle detection
- 5m LiDAR
- Outer width of forks
- 600 mm
- Safety bumper
- Front safety collision edge
- Minimum aisle width
- 1,400 / 1,800 mm†
- Positioning accuracy
- ±100 mm
† Minimum aisle width shown as stacking aisle / right-angle turning aisle.
