Reach Truck AMR

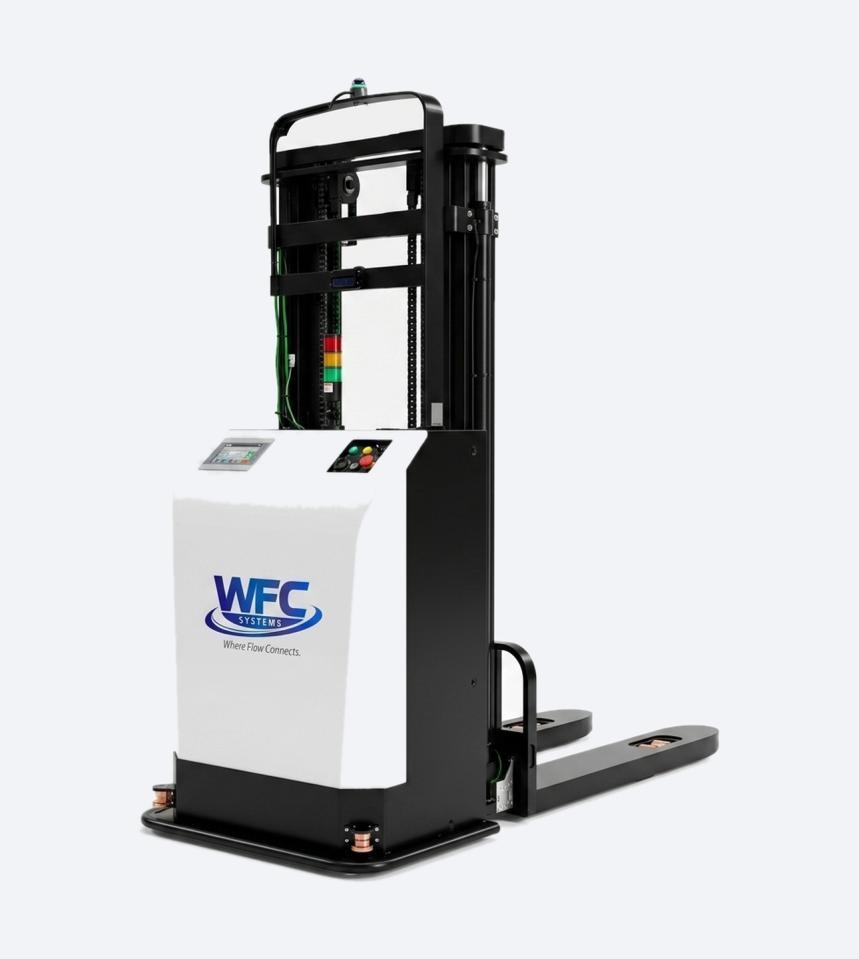

2T Reach Truck AMR
Verified specifications for a Laser SLAM reach truck AMR with a 2,000 kg load capacity and 3,000 mm lifting height.
Key specifications
- Load capacity
- 2,000 kg
- Lifting height
- 3,000 mm
- Turning radius
- 1,604 mm
- Battery
- 25.6V / 202Ah
Full specifications
Technical details.
Values are reproduced from the approved WFC AMR fleet catalogue.
- Class
- Reach Truck AMR
- Travel speed, laden / unladen
- 1.11 / 1.25 m/s
- Navigation method
- Laser SLAM
- Voltage / capacity
- 25.6V / 202Ah
- Communication / WiFi
- WiFi required (always-on)
- Runtime
- 8H
- Dimensions (L × W × H)
- 1,908 × 914 × 2,222 mm
- Charge time
- 2H
- Fork size
- 1,150 × 247 × 75 mm
- Obstacle detection
- 5m LiDAR
- Outer width of forks
- 685 mm
- Safety bumper
- Front safety collision edge
- Minimum aisle width
- 1,500 / 2,000 mm†
- Positioning accuracy
- ±100 mm
† Minimum aisle width shown as stacking aisle / right-angle turning aisle.
